Consistent force ,effortless clamping :Orcan Pneumatic/air operated Bench Vice
High production assembly or filling makes the operator feel tired, and production takes a toll.
Orcan pneumatic/air-operated bench vices are designed to take off the operator’s load. A footswitch can operate the work-holding. This makes the operator use both hands in the assembly process.
Also, the clamping and de-clamping operations are fast, saving precious operator time. The clamping force is consistent over every cycle, which is not a function of operator intention or sincerity.
The investment made in purchasing the Oran pneumatic vice is paid back in a few months’ time.
Unleashing the power an air-operated vice .
Transform your shopfloor operations with Orcan’s Pneumatic/air-operated Bench Vice. Its engineered for effortless use and unmatched efficiency. Adjust manually to within +5 mm of your job, then let air/pneumatic clamp and declamp take over, delivering a powerful 1000 kg clamping force at 8 bar of dry compressed air. The air pressure can be fine-tuned and adjusted via the included regulator for precision control.
Operate with ease using pushbuttons, hand lever valve, or foot switch (see our demo video showcasing a 10+ kg job enduring hammer strikes!). Designed to save time, reduce operator fatigue, and ensure consistent clamping force, Orcan’s air operated vice is the ultimate solution for business owners seeking productivity and reliability in their shop floor
How can a small investment add productivity to your assembly operations?
Let us show the pneumatic/air operated bench vice in action using foot switch
While the pneumatic vice is used with a footswitch, the vice remains in the clamp or unclamp position even if the foot switch is not pressed.
The clamping force is not dependent on the operator force; rather, it is the function of pneumatic air pressure. For a full clamping force of 1000 Kg, compressed air at a pressure of 8 bar with class-2 dry air is essential for peak performance.

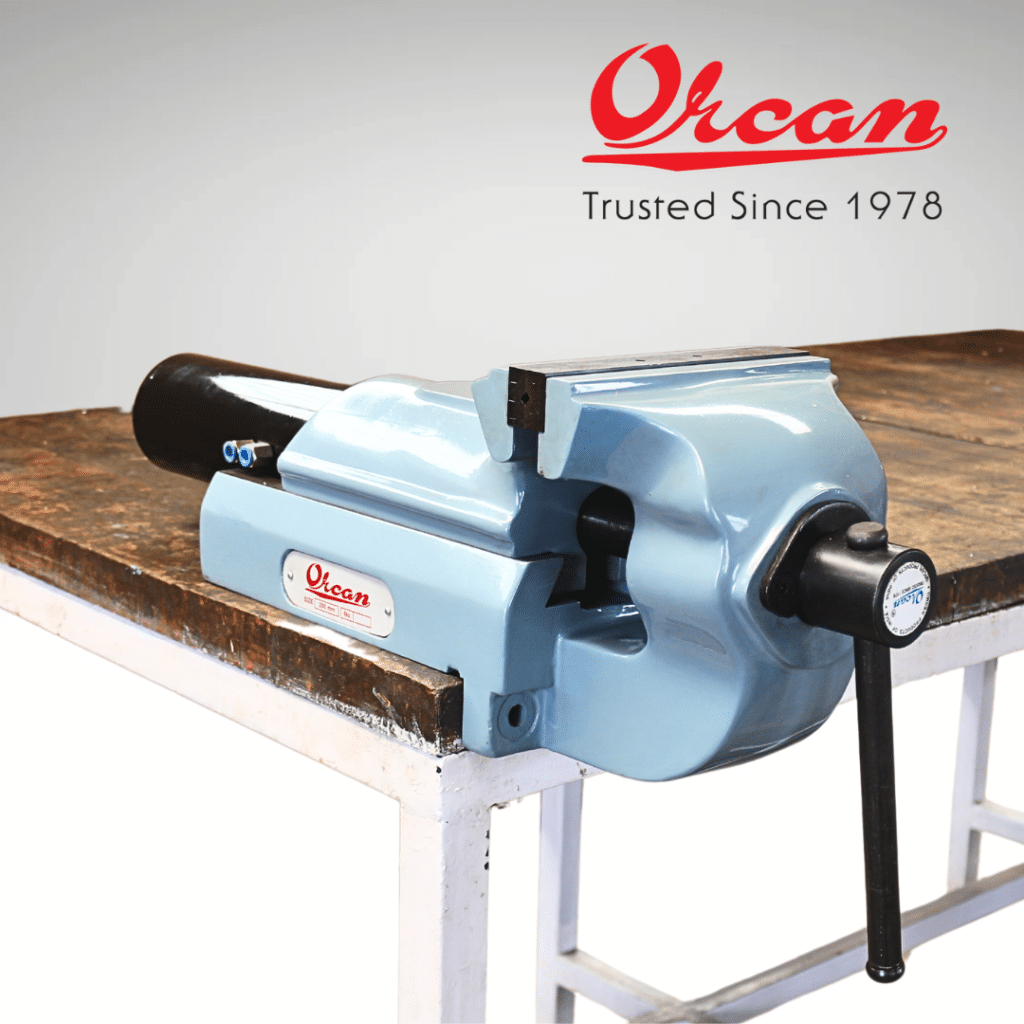

The specifications of the Orcan pneumatic bench vice.
| Jaw Width | Jaw Opening | Depth Of Throat | Weight in Kg |
|---|---|---|---|
200 mm | 200 mm | 80 mm | 48 |
Operating Options to suit your work-holding needs
Directon control valve operation
A solenoid valve after air prepration unit is used to control the operations of the pneumatic bench vice

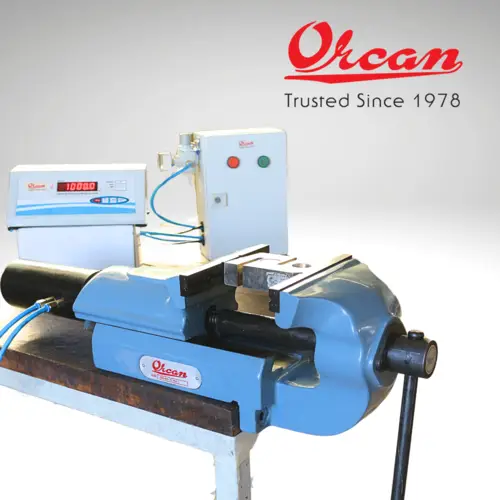

Push button operations
push buttons can be used to control the clamping declamping of the pneumatic bench vice
Footswitch controlled whenyou need operator hands to be free
a latch type foot switch can be used to control the bench vise with both hands used to carefully place the job in the vice and clamping declamping done through foot actuations
Hand lever valve
pneumatic hand lever valve is one of the most inexpensive & simplest means to operate the vice
Our Recommendations for buying air operated vice.
We recommend you buy the pneumatic bench vice along with the pneumatic control panel from us, since we use high-end pneumatic components from world-renowned companies like SMC pneumatic. However, it’s slightly higher on rates but even higher on performance & long life. We also use Rittal powder-coated panel with PU seal to prevent Dust and moisture ingress into the panel.
Boost Efficiency with the Orcan Pneumatic Bench Vice
Looking for a pneumatic bench vice that streamlines your workflow? The Orcan Pneumatic Bench Vice is your ultimate solution for high-production fettling operations, offering unmatched efficiency and ease of use. Designed to save time and reduce operator fatigue, this innovative vice delivers a consistent 1000 kg clamping force at 8 bar of compressed Class-2 dry air, making it ideal for industrial applications like alluminium die casting, assembly, and machining.
