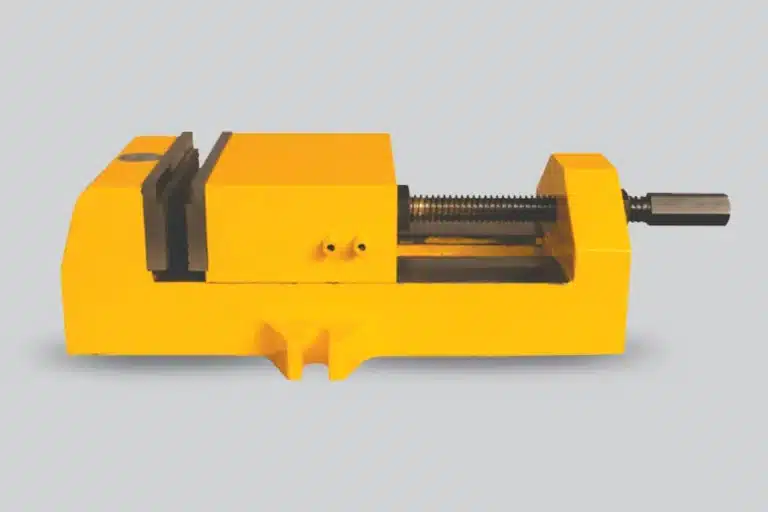

PNEUMATIC MACHINE VICE
Add Speed & consistent clamping force to your work holding using the Ocan pneumatic vice
For your production on the VMC machine or on assembly lines, when the operations are in hundreds per shift. Use the Orca pneumatic machine vice to add efficiency and speed to your operations.
This would also improve the happiness of the operators as their fatigue would be drastically reduced.
Unleash Unmatched Efficiency with Orcan’s Pneumatic Machine Vice
Say goodbye to inconsistent clamping force that risks damaging your job, machine, and resources in VMC operations. The Orcan Pneumatic Machine Vice delivers reliable, consistent clamping, enhancing productivity, tool life, and product quality while reducing operator fatigue. Engineered for CNC, VMC, and milling applications, this vice is your solution for precision work holding and shopfloor efficiency.
Every good products comes at a purchase price.
The return on your investment is fast as our clamping is. the gain in production after ROI is moreimportant then the initial investment in the pneumatic machine vise
4" Jaw width
- Maximum opening 95 mm
- weight 15.4 kg
- warranty 1 year
- spares available
- Pneumatic control panel : extra charges
- Foot switch for hands free working : extra charges
- Clamping force :400Kg @ 8 Bar
Client Testimonial using orcan pneumatic machine vice on VMC
KEY BENEFITS of pneumatic clamping
Fatigue Free Operations through pneumatic vice
In production workflow , the operation of assembly or machining is done hundreds of time per shift. with operators exerting the manual force to clamp or declamp work holding devices. With orcan pneumatic machine vise usage operators need to just press a button to operate the vise with minimal manual force
Benefits of Fast clamping de-clamping operations
in production departments every clamp /unclamp cycle is few secs .but when its done multiple times the times saving is reflected from first operation. With these vices being used ,you can get more jobs done with in the same shift.
Why Choose Orcan’s Pneumatic Machine Vice?
- consistent clamping force of 1000 kg in every operations the quality of finish on the job improves with less vibrations more tool life ,more up time of the machine . all this results in saving money and time.
Is use of Foot switch good for hands free clamping ?
when you choose foot switch integration ,operators both hands can handle the job well to place securely on to the vise
- Consistent Clamping Force: Delivers up to 4500 N (1000 kg) at 7 bar, adjustable from 400 kg to 1000 kg, preventing job damage and machine wear.
- Enhanced Productivity: Rapid pneumatic clamp/declamp via pushbuttons, foot switch, or CNC M-code reduces setup time, increasing throughput.
- Reduced Operator Fatigue: Automated clamping eliminates manual effort, allowing focus on precision machining.
- Improved Tool Life: Vibration-free operation with hardened tool steel jaws ensures longer tool durability and superior product quality.
- Resource Protection: Unique rear jaw movement design minimizes front jaw breakage, safeguarding your VMC resources.
Super Charge your vice performance with these accessories
- Quick-release couplings are used to attach and detach the pneumatic pipes to the vice easily. It allows faster setup time as during setup, the vice would be free of any pipes and would be much quicker to align on the machine table. Also, storage of the vice would be much more convenient, as handling the vice without the pneumatic pipes is much easier and entangle-free. Quick-release couplings are designed for easy removal and attachment without risking air leakage.
Pneumatic control panel
It's much easier and economical to have a solenoid valve connected in line with the pipes. Still, the life of the valve and the quality of operations would be drastically affected. When the valve is put in a dust-free powder-coated box, the control circuitry, like the power supply, the pneumatic elements like the silencer, etc, gets much better protection from oil and dust, thus increasing its performance.

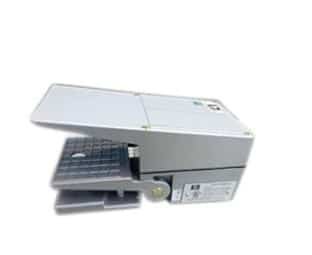

Footswitch
The footswitch is used to operate the pneumatic machine's vice clamping and de-clamping without manual operation. It allows the user to use both hands free to handle the job on the vice. We use a toggle-type footswitch.
Refrigerated Air Dryer
It's essential to the operation of pneumatic machine vice, since compressed air condenses to form water, which can damage the internal parts of the control elements and pneumatic cylinder. With a refrigerated dryer, moisture is removed from the air, improving the air quality of Class-2 dry air suitable for working with pneumatic vices.
Why Choose Orcan’s Pneumatic Machine Vice?
Key Features for Superior Performance
- Powerful Clamping Force: Delivers up to 4500 N (1000 kg) at 8 bar of compressed air, adjustable from 400 kg to 1000 kg for precise control.
- Effortless Operation: Manual screw adjustment (+5 mm) followed by rapid pneumatic clamp/declamp via pushbuttons, foot switch, or CNC M-code, ensuring fatigue-free performance.
- Consistent Precision: Hardened tool steel jaws with perfect parallelism and a steel moving jaw eliminate pressure drops and air leaks.
- Vibration-Free Machining: Unique rear jaw movement design prevents front jaw breakage, ensuring stability and smooth operation.
- Time-Saving Automation: Fast clamping/unclamping reduces setup time, dividing tool change time by up to 8 with multiple vices, skyrocketing productivity.
Boost Your Shopfloor Efficiency
The Orcan Pneumatic Machine Vice is designed to save time and increase output without compromising quality. Whether you’re machining heavy workpieces or running high-volume production, this vice ensures:
- Reduced Operator Fatigue: Automated clamping eliminates manual effort, allowing operators to focus on precision tasks.
- Enhanced Productivity: Quick operations and consistent force improve throughput, making it perfect for industrial workshops, garage equipment, and CNC machining.
- Versatile Applications: Ideal for assembly operations, milling, drilling, and VMC setups, with optional swivel base for added flexibility.
Trusted by Industry Leaders
With 47 years of manufacturing excellence, Orcan’s work-holding solutions are trusted by top industries and engineering colleges across India and global markets like Switzerland, Australia, and the USA. Our 3-year warranty against breakage and 10-year warranty on the nut underscore our commitment to durability and reliability.
Take the Next Step
Ready to revolutionise your shop floor with the Orcan Pneumatic Machine Vice? Experience unbelievable efficiency and effortless productivity today.
