Leading Pneumatic Machine Vice Manufacturer Supplying to Pune
Orcan is a leading pneumatic machine vice manufacturer supplying to Pune, offering precision-built vices for heavy-duty machining, automotive components,and general manufacturing industries. Our products deliver strong gripping, long durability, and consistent performance to meet modern demands.
Challenges with Conventional Manual Vices
Manufacturers face several hidden problems with manual clamping:
- Different operators apply different tightening torque
- Clamping varies between day and night shifts
- Over-tightening damages components and jaws
- Manual tightening increases cycle time
- Continuous effort causes fatigue and injuries
- Quality becomes human dependent
Orcan air operated vice converts this human effort into controlled pneumatic power, giving predictable and repeatable results suitable for modern quality standards.
Working Concept of Orcan Pneumatic Vice
The vice uses an industrial pneumatic cylinder connected to a precision mechanical slide. When the operator presses the foot switch or push button, compressed air generates linear force that clamps the job securely. Once clamped, the system remains locked until the de-clamp command is given.
Key characteristics:
- Force depends only on air pressure
- Smooth jerk-free clamping
- No back movement during machining
- Suitable for delicate as well as heavy parts
- long life with minimal maintenance
Key Advantages of Orcan Air Operated Machine Vice
Hands-Free Operation
Foot switch control allows the operator to keep both hands on the component. This is extremely useful for:
- Assembly of heavy parts
- Alignment before drilling
- Holding irregular shapes
- Fettling and deburring jobs
Hands-free working improves safety and reduces loading time.
Consistent 1000 kg Clamping Force
At 8 bar class-2 dry compressed air, the vice produces up to 1000 kg clamping force. The same force is repeated in every cycle which results in:
- Better dimensional accuracy
- Reduced vibration
- Improved surface finish
- Lower tool breakage
- long life with minimal maintenance
Faster Production Cycles
Manual tightening normally takes 6–10 seconds. Pneumatic clamping requires less than 1 second. In high volume production this directly increases daily output without adding manpower and makes Orcan a preferred supplier in Pune.
Reduced Operator Fatigue
Continuous manual tightening causes wrist and shoulder pain. Orcan pneumatic vice removes physical strain and keeps operators productive throughout long shifts, especially in die-casting and machining environments
Heavy Duty Industrial Design
The vice is designed for rough shop-floor use:
- Hardened anti-slip jaws
- Rigid casting body
- Protected sliding mechanism
- Suitable for hammering operations
Wide Range of Industrial Machine Vices
Orcan manufactures a comprehensive range of industrial machine vices to suit diverse machining and production requirements. Our product range is designed to support both light-duty and heavy-duty industrial applications.

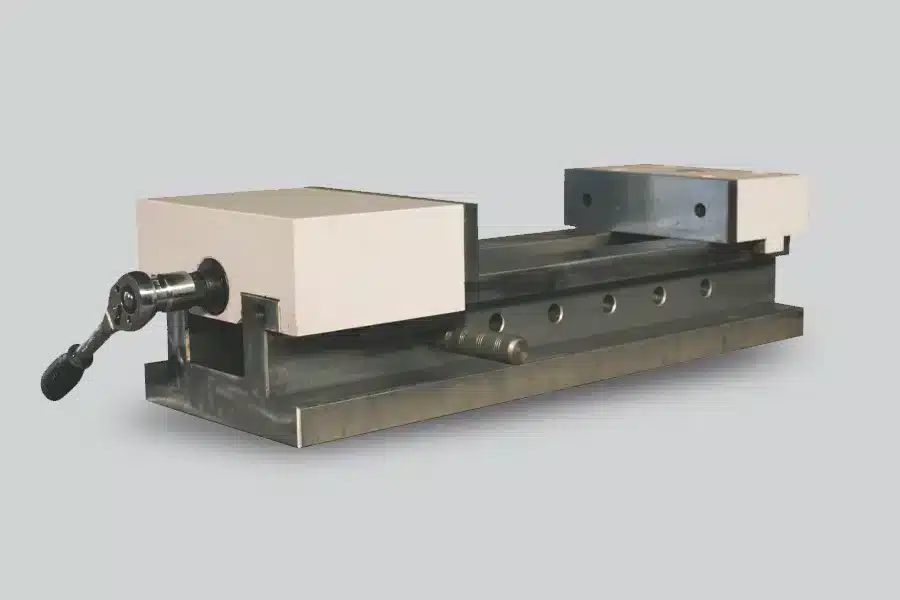

Dual Block Machine vise
Dual Block Machine Vise for VMCs clamps 175–235 mm dies, 10″ jaws, 80 mm height, alloy steel, high clamping force, vibration-free.
Twin job work-holding
Orcan Twin Job Vice holds two parts at once, ensures equal force, boosts productivity, reduces setup time, and is durable alloy steel.

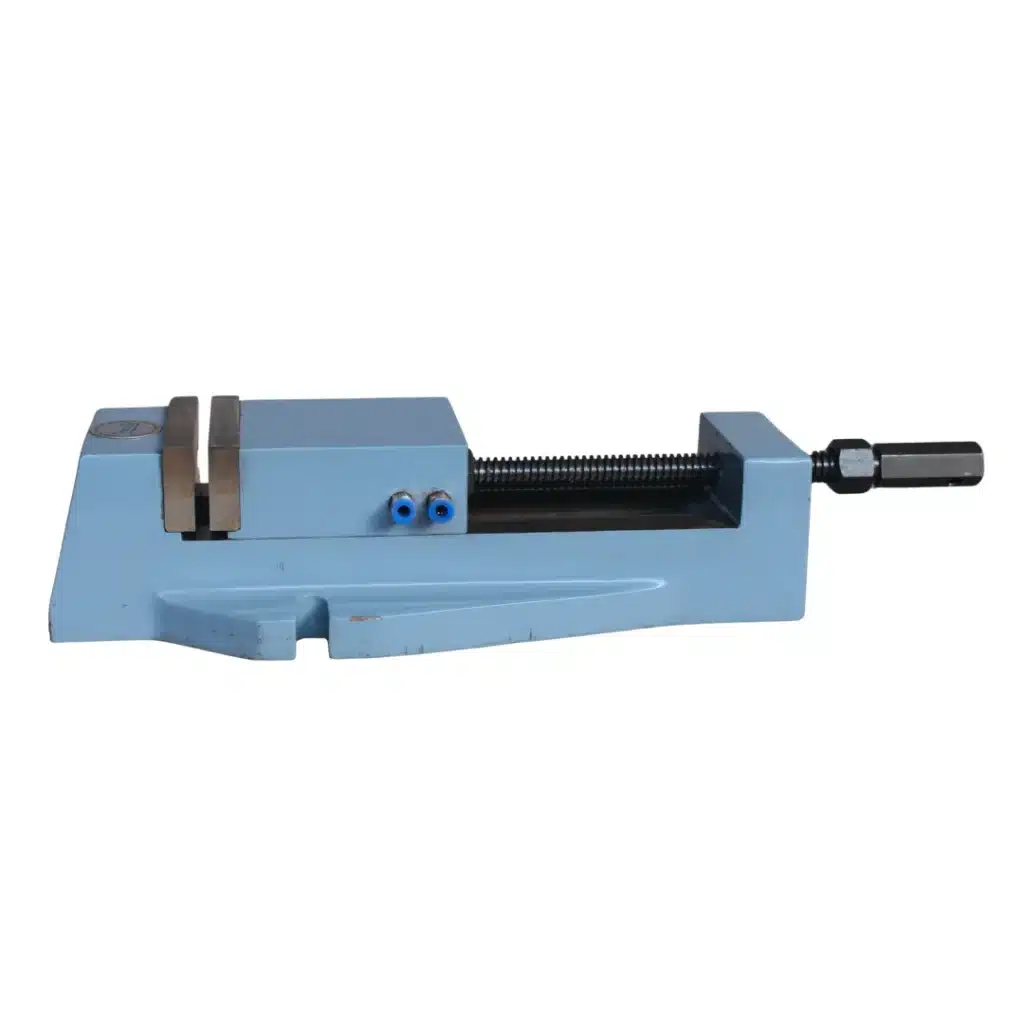

PNEUMATIC MACHINE VICE
Orcan Pneumatic Vice offers fast, consistent clamping, boosts productivity, improves tool life, and reduces setup time.

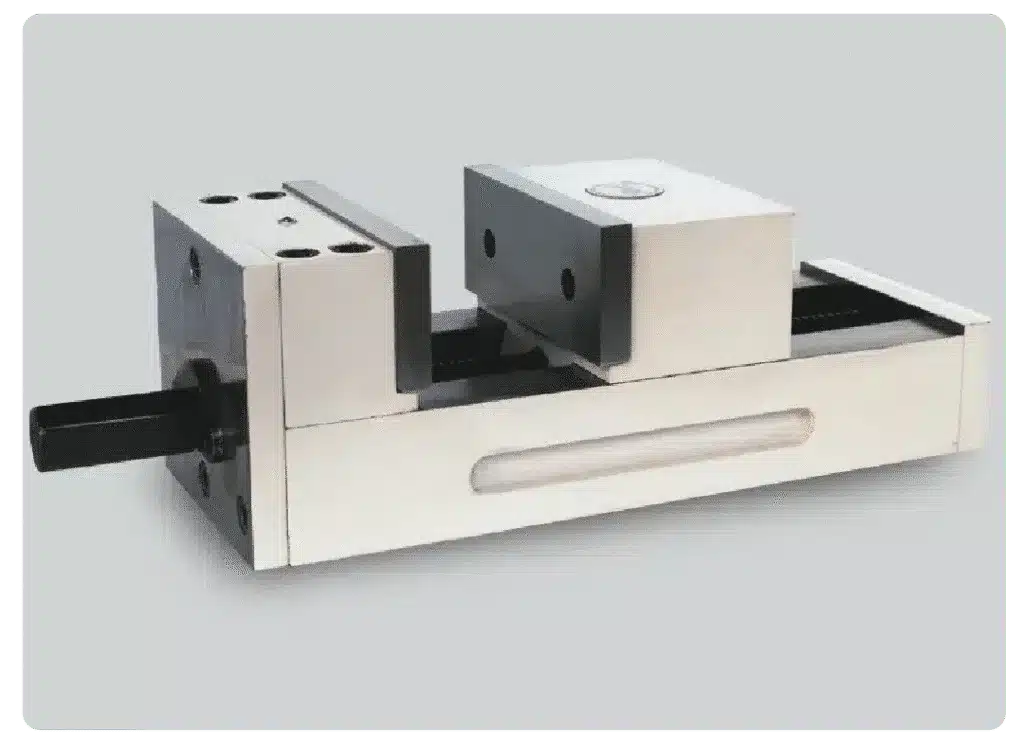

PRECISION MACHINE VICE
Orcan Precision Machine Vice ensures strong, consistent clamping, reduces vibration, improves finish, and offers long-lasting.

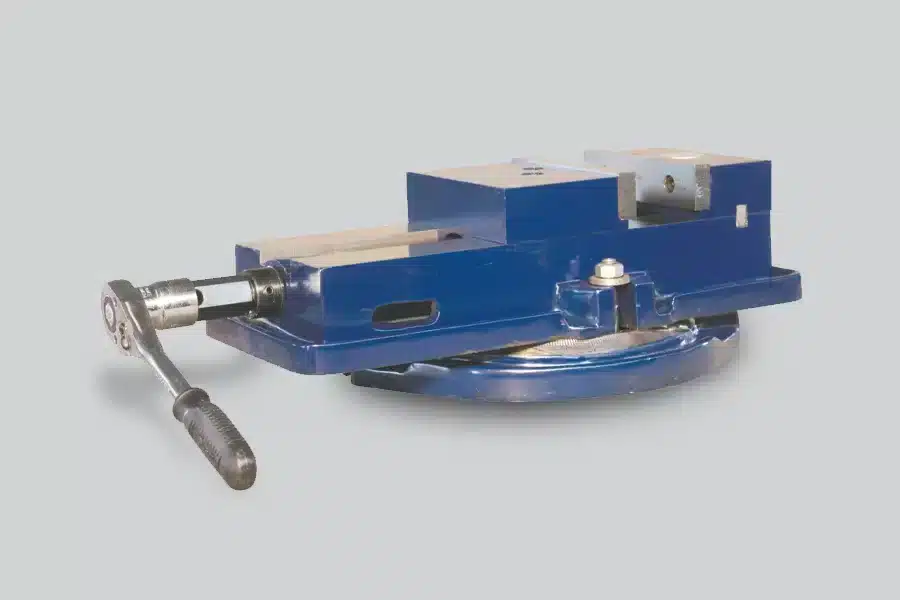

QUICK ADJUST HEAVY WEIGHT VISE
Orcan Quick Adjust Vice enables fast jaw setup, high clamping force, precision, and productivity for heavy, large jobs on VMCs and mills.
DOVE TAIL MACHINE VICE
Orcan Dove Tail Vice with 60° dovetail slide ensures pull-down clamping, prevents jaw lift, and delivers precise, vibration-free heavy machining.
MULTIPURPOSE MACHINE VICE
Orcan Deep Throat Multi-Purpose Vice provides secure, precise clamping for large parts, reduces vibration, improves accuracy.
DRILL PRESS VICE UNI GRIP TYPE
Orcan Uni-Grip Drill Press Vice provides firm, slip-free clamping, reduces vibration, improves hole accuracy, and boosts safety.
Industrial Applications
Orcan pneumatic machine vice is widely used in Pune and across India for:
- CNC drilling, tapping and milling
- Aluminium die casting trimming
- Automobile component manufacturing
- Pump and valve assembly
- Electrical panel fabrication
- General engineering workshops
- Maintenance departments
- Tool rooms and training centers
Any process requiring repetitive work-holding can benefit from this vice.
Technical Specifications
- Jaw Width: 200 mm (8″)
- Maximum Opening: 200 mm
- Depth of Throat: 80 mm
- Clamping Force: Up to 1000 kg
- Operating Pressure: 8 bar
- Weight: 48 kg
- Air Requirement: Class-2 dry air
- Warranty: 1 year
- Nut Warranty: 10 years
- Spares: Available in Pune
Optional Accessories
- Pneumatic control panel
- Foot switch
- Push button station
- Hand lever valve
- FRL unit
Productivity Impact Example
For a job of 500 components per day:
- Manual clamping: 8 sec
- Pneumatic clamping: 1 sec
- Saving: 7 sec × 500 = 3500 sec
- 58 minutes per day
- almost 25 hours per month
This equals adding three extra working days without new labor or machine investment.
Importance of Quality Pneumatic Panel
We recommend using the Orcan control panel because it includes:
- Genuine SMC pneumatic components
- Rittal powder-coated enclosure
- Proper pressure regulation
- Dust and moisture protection
- Safe hose management
This ensures stable performance and long service life even in Pune’s dusty industrial environment.
Flexible Operating Methods
The vice can be used through
- Foot switch for assembly work
- Push buttons near machine
- Hand lever for simple use
- Direct valve for automation
In foot switch mode, the vice holds its position even after release, providing safety during operations.
Maintenance Guidelines
- Use clean and dry compressed air
- Drain compressor daily
- Light lubrication weekly
- Clean jaws after grinding
- Inspect hoses periodically
With basic care the vice performs reliably for many years.
| Parameter | Manual Vice | Orcan Pneumatic Vice |
|---|---|---|
| Clamping Force | Operator dependent | Uniform |
| Speed | Slow | Fast |
| Fatigue | High | None |
| Rejection | More | Less |
| Safety | Medium | High |
Why Choose Orcan Pune
We provide complete work-holding solutions, not only a product
Leading machine vise manufacturer supplying to Pune
Local manufacturer with application knowledge
After-sales support
Ready spare parts
Custom jaw options
On-site demonstration
Ideal Users
- CNC job work companies
- Die casting units
- Assembly contractors
- MSME workshops
- Maintenance teams
- Educational institutes
Serving Mumbai and Pan-India Markets
While Orcan is a leading machine vise manufacturer supplying to Mumbai, we serve customers across India through a strong distribution and logistics network. Our efficient logistics network ensures safe and timely delivery for both small and bulk orders.
